wholesale TPM2.0 pfsense server mini pc 4lan J1900 X86 processor industrial computer 4 ethernet lan ports RS232
wholesale TPM2.0 pfsense server mini pc 4lan J1900 X86 processor industrial computer 4 ethernet lan ports RS232
Regular price
$233.42 USD
Regular price
$0.00 USD
Sale price
$233.42 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
wholesale TPM2.0 pfsense server mini pc 4lan J1900 X86 processor industrial computer 4 ethernet lan ports RS232
◆ Embedded Design Intel Baytrail-D/I/M series processor；
◆ DDR3 SODIMM 204 Socket RAM socket Max support8G；
◆ Onboard 32/64/128G EMMC chip（Optional）；
◆ Mini-PCIE socket，Support wifi module，and SIM card socket，support 3G Module；
◆ Rich I/O Interface，include 2*USB ports、4*Intel I211 Lan card、1*HDMI,1*RJ45 RS232 Interface；
◆ Fanless Design，Noiseless design，Stable and efficient；
◆ 12V DC power supply，Power supply is simple and convenient；
◆ DDR3 SODIMM 204 Socket RAM socket Max support8G；
◆ Onboard 32/64/128G EMMC chip（Optional）；
◆ Mini-PCIE socket，Support wifi module，and SIM card socket，support 3G Module；
◆ Rich I/O Interface，include 2*USB ports、4*Intel I211 Lan card、1*HDMI,1*RJ45 RS232 Interface；
◆ Fanless Design，Noiseless design，Stable and efficient；
◆ 12V DC power supply，Power supply is simple and convenient；
Specification
|
Case |
Model Name
|
N-BOX-T2
|
|
Colour
|
Black
|
|
|
Size
|
134*126*45.3 mm
|
|
|
Material
|
6063
|
|
|
Motherboard |
Chipset
|
Baytrail-I/D/M series Processor single chip
|
|
CPU
|
Support Baytrail-I/D/M series processor(J1900 J1800)
|
|
|
RAM
|
Singel channel DDR3 1066/1333/1600MHz，Max support8G
|
|
|
Graphics card
|
Intel HD Graphics
|
|
|
Expansion interface
|
1*MINI-PCIE socket，can added wifi、3G/4G module(Support PCIE&USB Signal equipment)
|
|
|
1*MINI-SATA socket，can added SSD
|
||
|
1*Onboard EMMC 32/64/128G(Optional）
|
||
|
Memory
|
HDD
|
2.5inch HDD
|
|
SSD
|
SSD
|
|
|
EMMC
|
32/64/128G（Optional）
|
|
|
Function
|
Display output
|
HDMI
|
|
Network Output
|
4*Intel I211 Lan card
|
|
|
USB
|
1*USB2.0、1*USB3.0
|
|
|

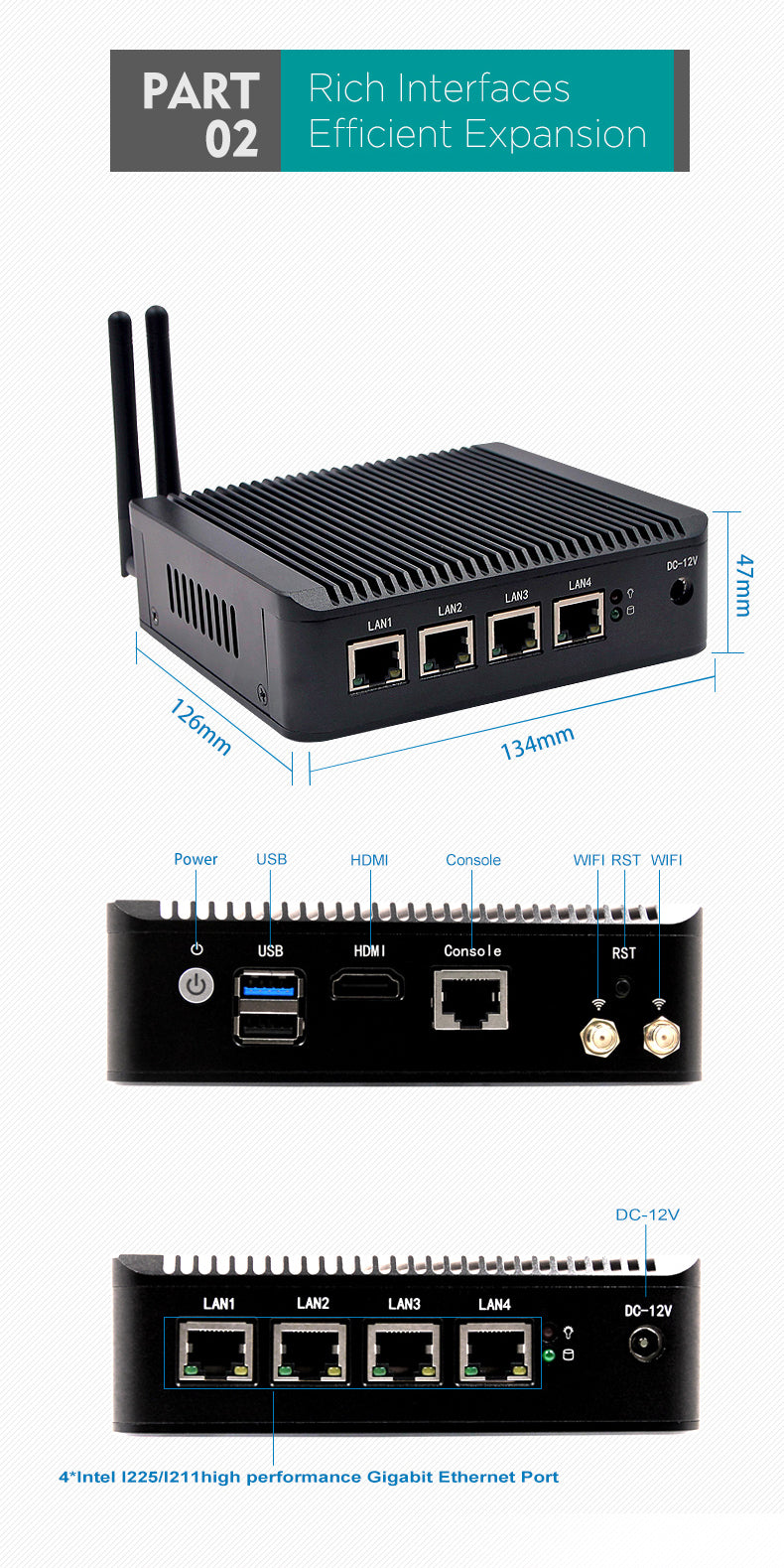

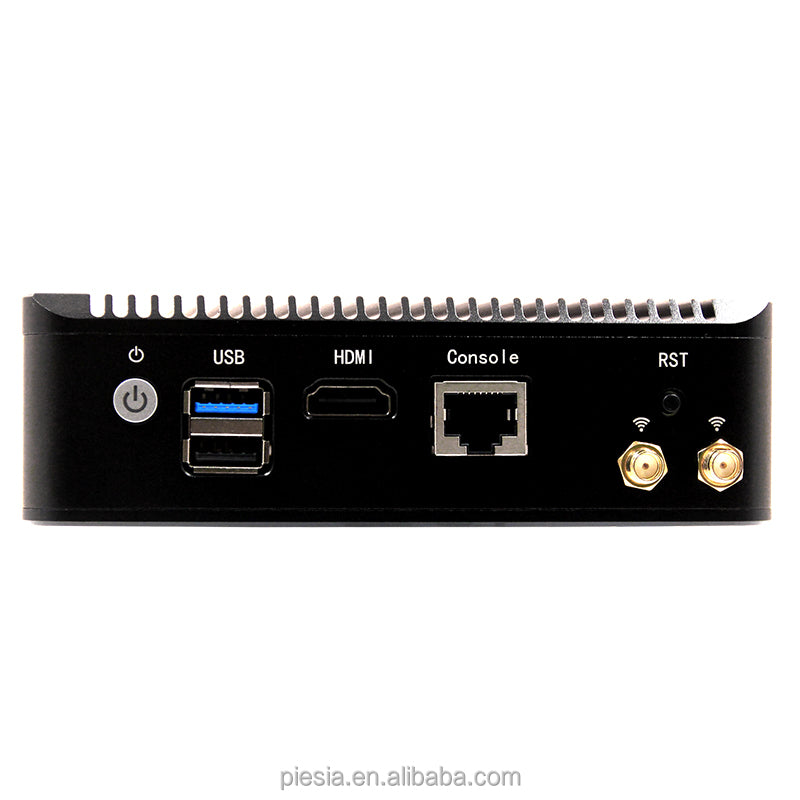

Front I / O interface
|
1*Power switch (with indicator light)、1*Reset Button、1*HDMI、1*RJ45 interface RS232、2*USB
|
|
|

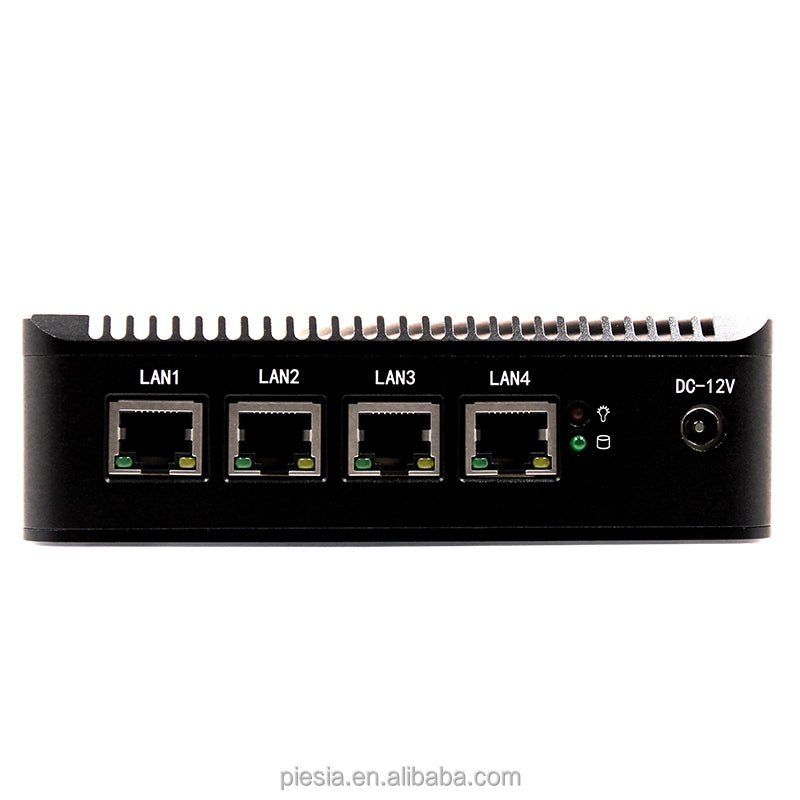

Rear I / O interface
|
4*Intel I211 High-performance Gigabit Ethernet、1*Power Indicator、1*Hard disk indicator、1*DC Power supply interface
|
|
|
Working temperature
|
-10~60℃
|
|
|
OS
|
Windows7、Windows 8、Windows8.1 Windows10、linux
|
|
|
Power Supply
|
DC12V Power Supply
|
Details Images
