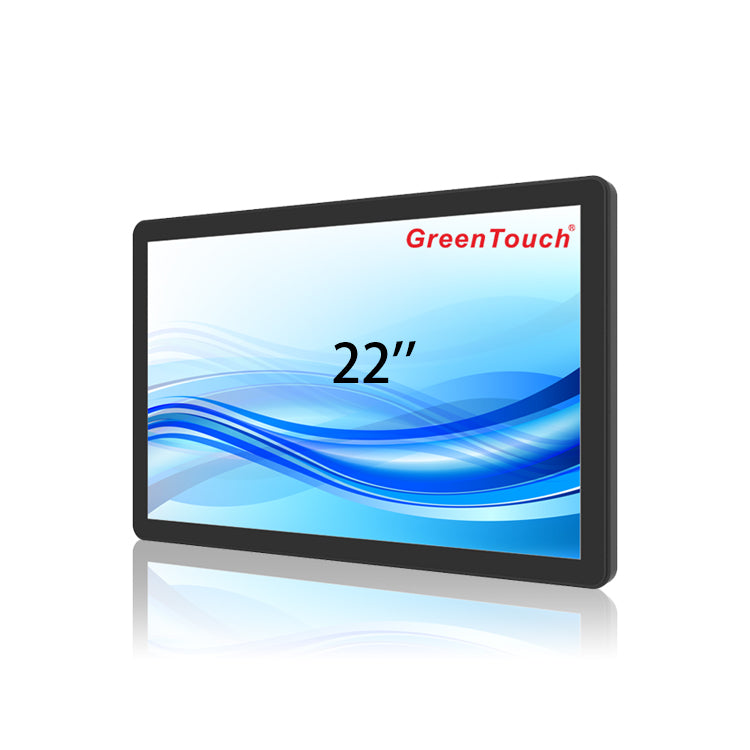

GreenTouch 22 inch True Flat P-CAP Touch Panel PC Industrial Computer All-In-One Touch screen Integrated PC Computer PC

Product Name:

Open Frame Touch All In One

Display Type：

Active Matrix TFT LCD, LED Backlight

Model：

GT-TC-2202C-CTW-PC

Diagonal Dimension:

22 Inch Diagonal

Active Area Dimensions:

549.8*372.8mm

Display Sizes:

477.7*300mm

Aspect Ratio:

16:10

Display Colors:

16.7M

Touch Technology:

Projected Capacitive touch

Touch Points:

10 points

CPU optional:

J1900 , I3, I5, I7

RAM Optional:

2G, 4G ,8G ,16G

SSD Optional:

64G, 128G ,512G

HDD Optional:

500G , 1T,2T

USB external Bluetooth

available optional

WIFI module +antenna

available optional

Temperature:

Operating: 0°C to 60°C

Humidity:

Operating: 20% to 80% (No Condensation)

Temperature:

Storage: -20°C to 60°C

Humidity:

Storage: 5% to 95% (Non-condensing)

Speakers：

Built-in 2*3W Speakers

Extra Video Output:

1 x VGA; 1 x HDMI

USB Interface:

4*USB TYPE-A

Network Card:

1 Road Onboard Realtek 8111e Gigabit

Audio Interface:

1*3.5mm Audio Input;1*3.5mm Audio Output

RS232 Interface:

4*RS232(standard)Interfaces

Warranty:

1 Year

Power Consumption:

Depend On Motherboard And The Minimum is 25W

Mounting Options:

VESA Mounting,Built-in,Open Bracket Mounting

Agency Approvals:

FCC,CE,RoHS,CB,ISO

Wifi:

Built-in 802.11b / g / n wireless, external two 3DB omnidirectional antenna

Power:

External DC, input voltage DC: 12V INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) -Type: DC cartridge receptacle;
Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridgedepth: 8.0 mm (± 0.3 mm);
