Compact Rugged Outdoor Fanless Industrial Mini PC 12V Core I5 5250U Win7 Embedded Linux Server Micro Computer for Kiosk ATM CCTV
Compact Rugged Outdoor Fanless Industrial Mini PC 12V Core I5 5250U Win7 Embedded Linux Server Micro Computer for Kiosk ATM CCTV
Couldn't load pickup availability
OEM Rugged Case Fanless 12V Industrial Mini PC Intel Core I5 5200U Windows7 Linux Embedded Computer 8G RAM 256G SSD RTC PXE
| Different Configuration Comparison |
|||||
| CPU |
Graphics |
RAM |
Storage |
LAN/COM/USB Port |
EXW Price (Barebone) |
| Intel Core i5 8250U |
Intel UHD Graphics 620 |
2 DDR4 slot, max 32G |
M.2 + mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i5 7200U |
Intel HD Graphics 620 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i5 5250U |
Intel HD Graphics 6000 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
US $218 |
| Intel Core i5 4200U |
Intel HD Graphics 4400 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i5 3317U |
Intel HD Graphics 4000 |
1 DDR3 slot, max 8GB |
mSATA + SATA |
2 LAN/4 RS232/8 USB |
US $208 |
| Intel Core i3 8145U |
Intel UHD Graphics |
2 DDR4 slot, max 32G |
M.2 + mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i3 7020U |
Intel HD Graphics 620 |
2 DDR4 slot, max 32G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i3 7167U |
Intel Iris Plus Graphics 650 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
US $197 |
| Intel Core i3 6157U |
Intel Iris Graphics 550 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
US $183 |
| Intel Core i3 6006U |
Intel HD Graphics 520 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i3 5005U |
Intel HD Graphics 5500 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i3 4005U |
Intel HD Graphics 4400 |
2 DDR3L slot, max 16G |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i7 10510U |
Intel UHD Graphics |
2 DDR4 slot, max 32G |
M.2 + mSATA + SATA |
1 LAN/2 RS232/7 USB |
US $387 |
| Intel Core i7 8550U |
Intel UHD Graphics 620 |
2 DDR4 slot, max 32G |
1 M.2+ mSATA+ SATA |
1 LAN/2 RS232/7 USB |
|
| Intel Core i7 5500U | Intel HD Graphics 5500 | 1 DDR3 slot, max 8GB | mSATA + SATA | 2 LAN/6 RS232/8 USB | US $290 |
| Intel Core i7 4500U | Intel HD Graphics 4400 | 1 DDR3 slot, max 8GB | mSATA + SATA | 2 LAN/6 RS232/8 USB | US $259 |
| Intel Celeron 1007U |
Intel HD Graphics |
1 DDR3 slot, max 8GB |
mSATA + SATA |
1 LAN/2 RS232/7 USB |
US $105 |
| Intel Celeron 1007U |
Intel HD Graphics |
1 DDR3 slot, max 8GB |
mSATA + SATA |
2 LAN/4 RS232/8 USB |
US $135 |
| Intel Celeron 1037U |
Intel HD Graphics |
1 DDR3 slot, max 8GB |
mSATA + SATA |
2 LAN/4 RS232/8 USB |
US $145 |
Kindly note: If you need any other configurations, please contact us at any time, thanks.
Specifications
| Processor |
Intel Core i5-5250U Processor, 1.6-2.6GHz, 2 core 4 thread |
| Memory |
Max 16G DDR3 1333/1600MHz laptop memory, 2* 260 pin SO-DIMM |
| Storage Capacity |
Support 1* 2.5 inch SATA laptop HDD or SSD, 1* MSATA SSD |
| Graphics |
Intel® HD Graphics 6000 |
| Power Supply |
DC 12V/5A |
| OS |
Windows7/8/10 and all kind Linux OS |
| Function |
Auto power on after power loss, PXE Boot, RTC Wake Up, etc |
| Case Material |
Full Brushed Aluminum Alloy |
| Dimension | 21.2*17*5 cm |
| I/O |
1* HD + 1* VGA 4K HD output |
| 1* Gigabit RJ45 Lan |
|
| 1* half height mini PCIe WiFi |
|
| 2* RS232 COM Port |
|
| 3* USB 2.0 + 4* USB 3.0 |
|
| 1* SPK + 1* MIC, High Definition Audio Controller |
|
| 1* DC Power interface |
|
| Temperature |
-10~60 degrees |
| Warranty |
30 days free defective replacement and 3 years free repair |
| Relative humidity |
0~90% relative humidity |
| TDP |
Theoretically 15W |
| Weight |
NW 1.6kg, GW 2.2kg |
| Package Content |

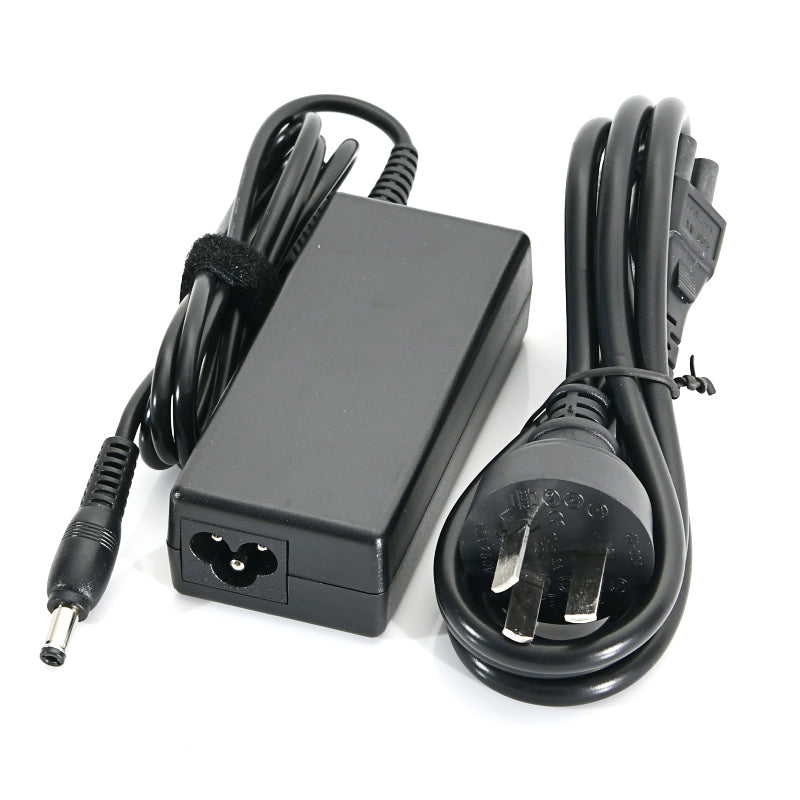

1* Mini PC; 1* power adapter; 1* power cord; 2* Antennas(optional); etc |
Highlights:
Main advantages
- Small size: all Adeli fanless mini pcs smaller than A4 paper, some of the small size pc only 3.5-inch size, just like the HDD sized using it traditional fat computers. Most of that small size fanless mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
- Durability: all those fanless mini pcs are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminum alloy computer case, very durable.
- Low power: all the Adeli fanless mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
- Universal performance: Adeli fanless mini pcs compatible with almost all popular operating systems, such as Win10, Linux. You can use this mini computer as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.
- Silent operation: fanless mini pc also name as silent computer, quiet mini pc or silent desktop pc. As there is no fan inside, the pc runs totally silent all day long, make sure you can keep wholehearted in to your work.
What can this mini computer do?
- Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
- Design work: Photoshop, CorelDraw, Dreamweaver, iIIustrator, Flash, InDesign and all others
- Game playing: support most online games and PC games, like War craft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
- Entertainment: support ultra HD 4K resolution, support XBMC and others program that support Windows and Linuxs
- Used as server, used as an industrial machine, hospital, factory, etc
